Brand: Maytag
Model: MFR50PNAVS - WASHER

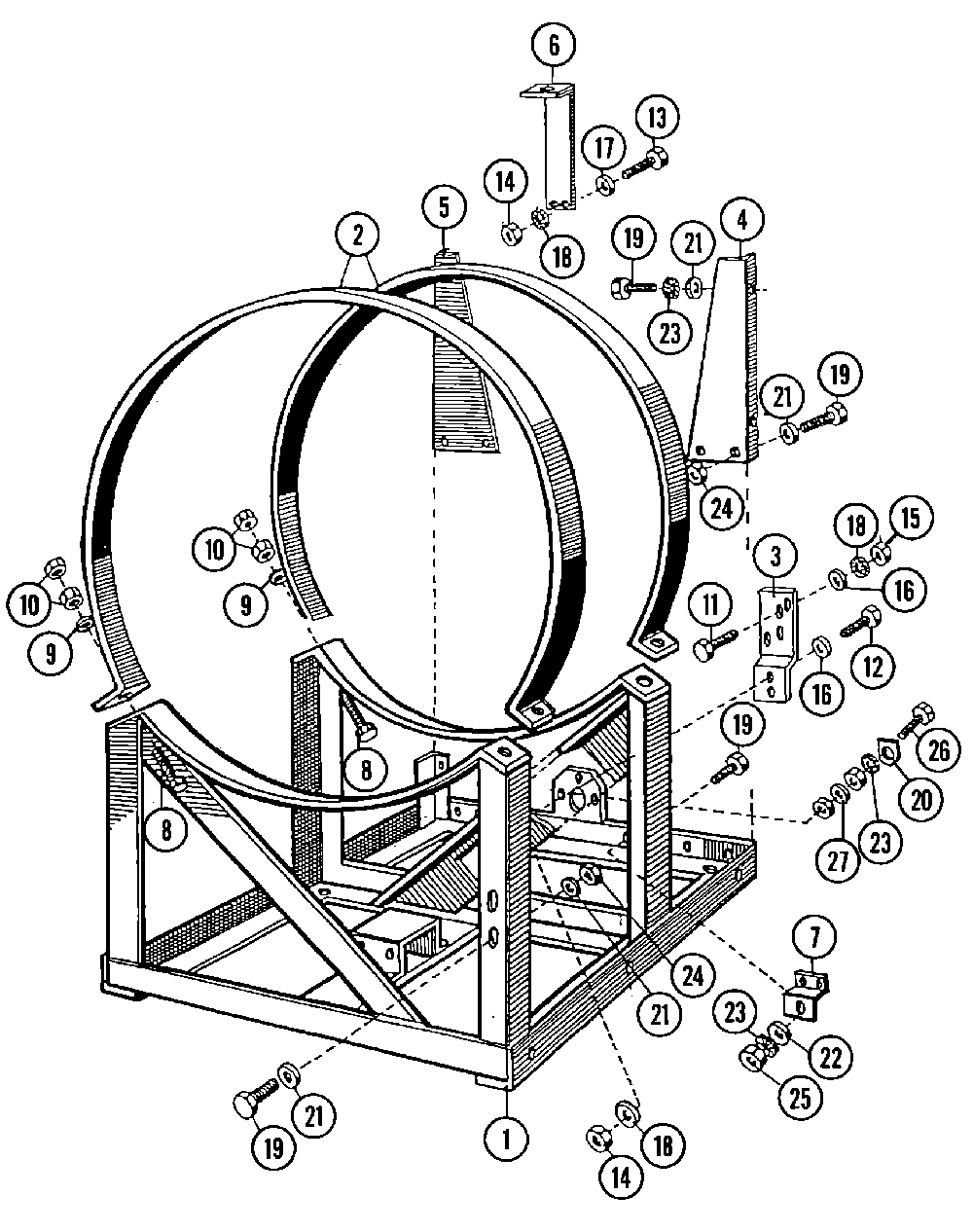

10 - BASE FRAME
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 23001296 | FRAME | $0.00 | |||
| 002 | 23001297 | CLAMP, TUB | $0.00 | |||
| 003 | 23001298 | BRACE, TUB SUPPORT | $0.00 | |||
| 004 | 23001299 | PANEL, SUPPORT BRACKET (RT) | $0.00 | |||
| 005 | 23001300 | PANEL, SUPPORT BRACKET (LT) | $0.00 | |||
| 006 | NLA | BRACKET | WG03A02017 | $0.00 | ||
| 007 | 23001302 | BRACKET | 23002845 | $0.00 | ||
| 008 | 23001294 | BOLT (M12 X 70) | $0.00 | |||
| 009 | 23001292 | WASHER (13) | $0.00 | |||
| 010 | 23001303 | NUT (M12) | $0.00 | |||
| 011 | 23001205 | BOLT (M8 X 45) | $0.00 | |||
| 012 | 23001304 | BOLT (M8 X 35) | $0.00 | |||
| 013 | 23001305 | BOLT M8X25 | $0.00 | |||
| 014 | 23001266 | NUT M8 | $0.00 | |||
| 015 | 23001306 | NUT, SELF LOCKING | $0.00 | |||
| 016 | 23001263 | WASHER (8.4) | $0.00 | |||
| 017 | 23001203 | WASHER (DIA. 16 X 8.4 X 1.6) | $0.00 | |||
| 018 | 23001265 | WASHER (8) | 23002727 | $0.00 | ||
| 019 | 23001307 | BOLT (M6 X 20) | $0.00 | |||
| 020 | 23001308 | HARDWARE, GROUNDING | $0.00 | |||
| 021 | 23001309 | WASHER (6.4) LU | $0.00 | |||
| 022 | 23001159 | WASHER (DIA. 12X6.4X1.6) | 23001608 | $0.00 | ||
| 023 | 23001028 | LOCK WASHE | $0.61 | |||
| 024 | 23001310 | NUT, SELF LOCKING (M6) | $0.00 | |||
| 025 | 23001034 | NUT | 23001312 | $15.36 | ||
| 026 | 23001157 | BOLT (M6X12 STNLS STEEL) | $0.00 | |||
| 027 | 23001159 | WASHER | 23001608 | $0.00 |
*The price can change whitout warning
