Brand: Maytag
Model: MFR50PNAVS - WASHER

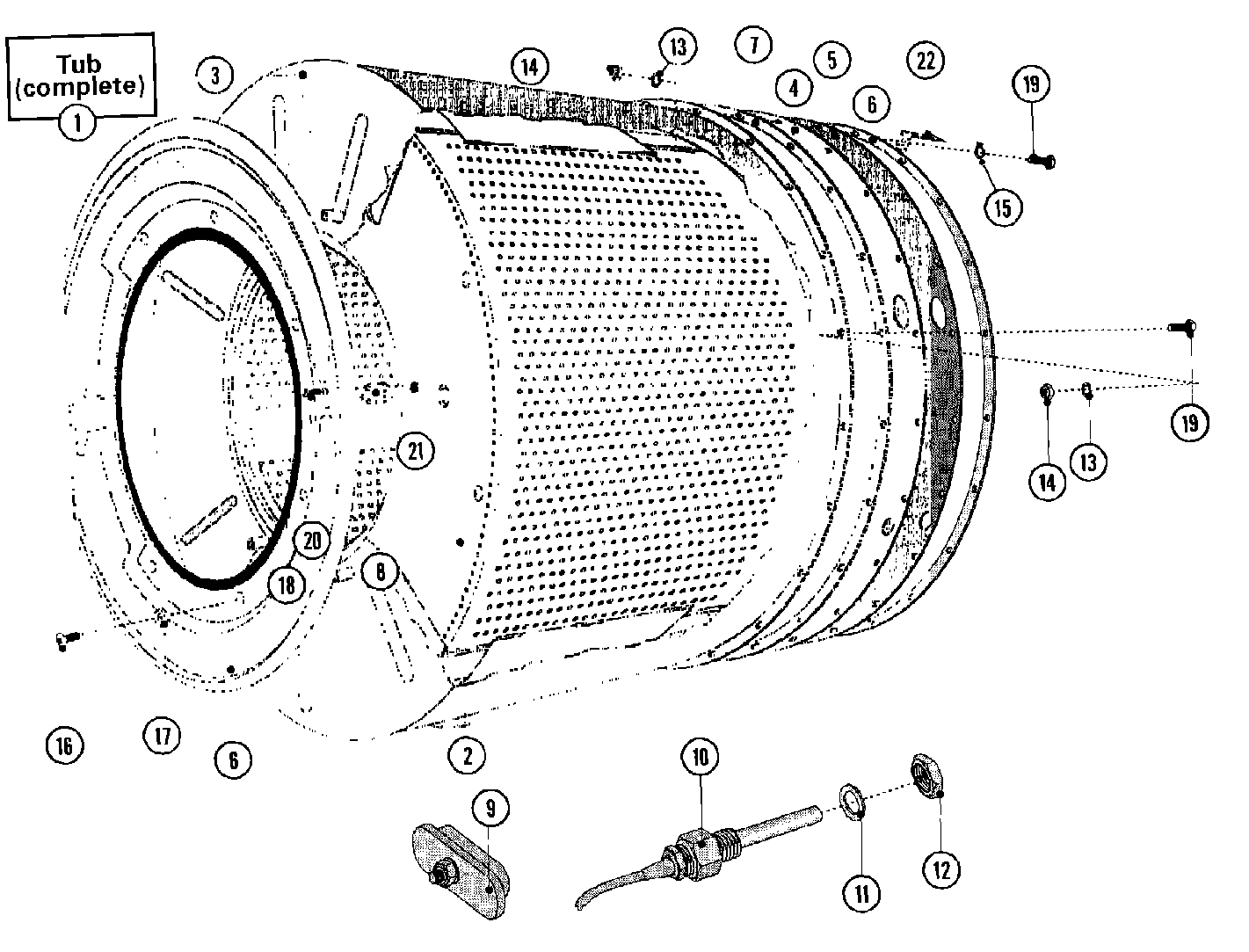

21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | NLA | TUB (COMPLETE) | WG03A02017 | $0.00 | ||
| 002 | 23003818 | DRUM AND SHAFT MFR 50 | WP23003818 | $0.00 | ||
| 003 | 23002971 | TUB | $0.00 | |||
| 004 | 23001194 | BACKPLATE (STNLS STEEL) | $0.00 | |||
| 004 | NLA | PLATE, BASE | WG03A02017 | $0.00 | ||
| 005 | 23001196 | BACKPLATE (IRON) | $0.00 | |||
| 005 | 23003981 | BEARING HOUSING STUD 14MM | $0.00 | |||
| 006 | 23001198 | SHIELD | WP23001198 | $0.00 | ||
| 007 | 23001199 | GASKET, REAR SHELL (24 HOLES) | $0.00 | |||
| 008 | 23001200 | HINGE, MIRCO SWITCH | $0.00 | |||
| 009 | 23001594 | BLIND, HEATING ELEMENT | $0.00 | |||
| 010 | 23001592 | ADAPTOR | $0.00 | |||
| 011 | 23002179 | WASHER | $0.00 | |||
| 012 | 23002936 | NUT, SENSOR BUSHING | $0.00 | |||
| 013 | 23002358 | WASHER M8 | 23002727 | $0.00 | ||
| 014 | 23001607 | NUT (M8) | 23001266 | $0.00 | ||
| 015 | 23001203 | WASHER (DIA. 16 X 8.4 X 1.6) | $0.00 | |||
| 016 | 23002617 | SCREW (M4X8) | $0.00 | |||
| 017 | 23001204 | WASHER, FINISHING (DIA. 5) | $0.00 | |||
| 018 | 23001088 | RUBBER TRIM | $0.00 | |||
| 019 | 23002847 | SCREW (M8X45) | $0.00 | |||
| 020 | 23001089 | SCREW | W10295997 | $5.08 | ||
| 021 | 23001055 | NUT (M4) | $0.00 | |||
| 022 | 23001206 | BRACKET, MOTOR HARNESS | $0.00 |
*The price can change whitout warning
