Brand: Maytag
Model: MFR50PNAVS - WASHER

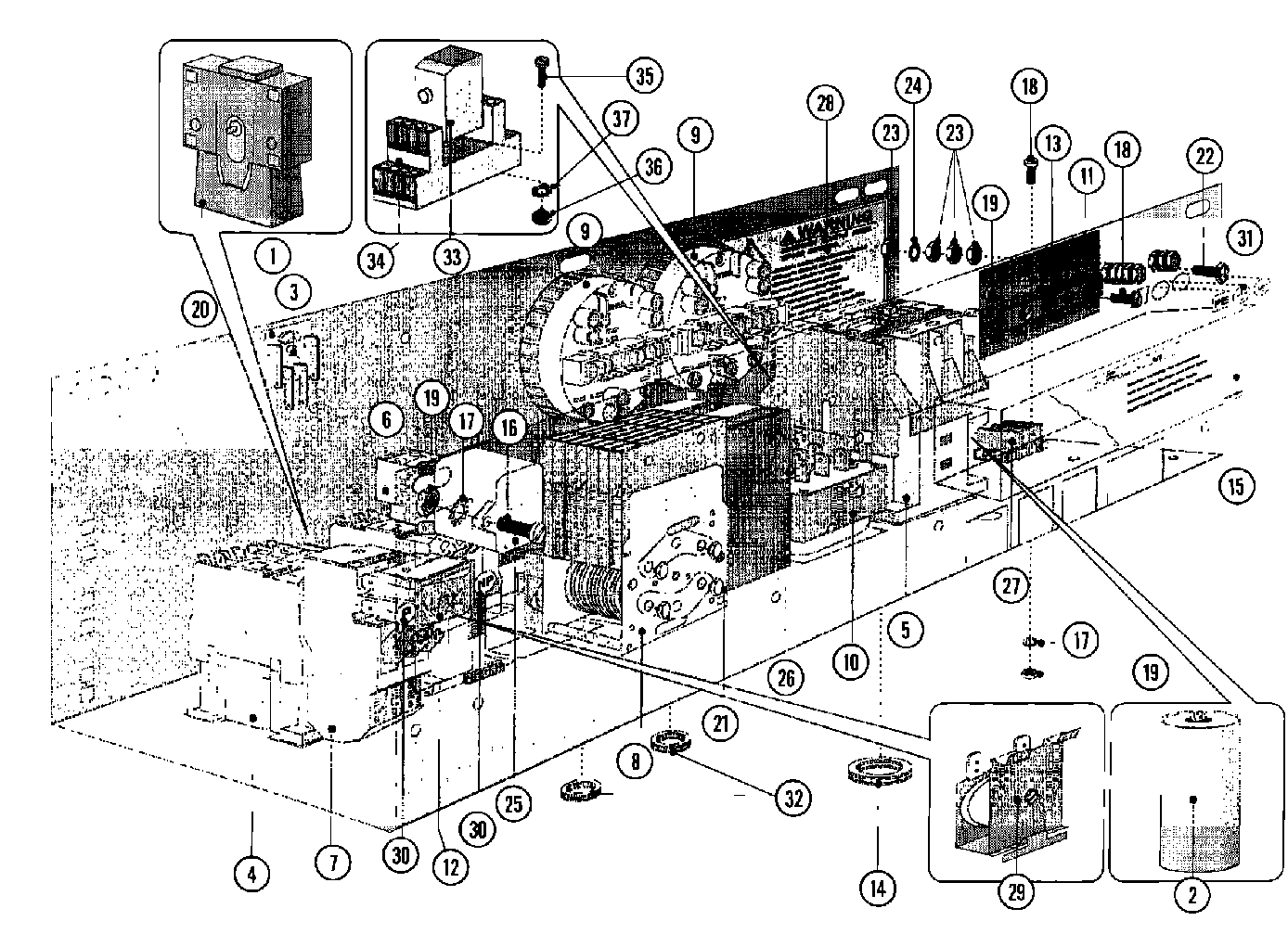

24 - ELECTRICAL COMPONENTS (SERIES 11)
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 23001094 | BRIDGE, RECTIFIER | $0.00 | |||
| 002 | 23001096 | CAPACITOR (60MF) | $0.00 | |||
| 002 | 23001098 | CAPACITOR (130MF) | $0.00 | |||
| 003 | 23001099 | PC BOARD SOCKET | $0.00 | |||
| 004 | 23001100 | CONTACTOR (LC1-D0901 M7) | $0.00 | |||
| 004 | 23001101 | CONTACTOR (LC1-D1201 M7) | $0.00 | |||
| 005 | 23001102 | CONTACTOR (LC1-D1801 M7) | 23003752 | $0.00 | ||
| 005 | 23001103 | CONTACTOR (LC1-D3201 M7) | $0.00 | |||
| 005 | 23001340 | CONTACTOR (LC1-D4011) | WP23001340 | $0.00 | ||
| 006 | 23001104 | AUXILIARY CONTACT (1NO-1NC) | $0.00 | |||
| 007 | 23001105 | RELAY, THERMAL OVERLOAD (9-13A | $0.00 | |||
| 007 | 23001106 | RELAY, THERMAL OVERLOAD (4-6A) | $0.00 | |||
| 007 | 23001108 | RELAY, THERMAL OVERLOAD (7-10A | $0.00 | |||
| 007 | 23002101 | RELAY, OVERLOAD (LR2-D1312) | $0.00 | |||
| 008 | 23001110 | TIMER- REV | WP23001110 | $985.10 | ||
| 009 | 23001111 | SWITCH, WATER LEVEL | $0.00 | |||
| 009 | 23001513 | SWITCH, WATER LEVEL | $0.00 | |||
| 009 | 23002176 | SWITCH, WATER LEVEL | $0.00 | |||
| 010 | 23002460 | THERMOSTAT (4 TEMP) | $0.00 | |||
| 011 | 23002154 | BOARD, TERMINAL (6 POLES) | $0.00 | |||
| 012 | 23001114 | ROCKER SWITCH, PREWASH/NO PREW | $0.00 | |||
| 013 | 23001115 | INSULATION PAPER | $0.00 | |||
| 014 | 23001117 | RING, RUBBER (DIA. 25) | $0.00 | |||
| 015 | 23001118 | STICKER, LIQUID SOAP | $0.00 | |||
| 016 | 23002423 | SCREW (M4 X 10) | 23001361 | $0.00 | ||
| 017 | 23002111 | WASHER (4) | $0.00 | |||
| 018 | 23002398 | BOLT | $10.33 | |||
| 019 | 23002399 | NUT M4 | 23001014 | $9.35 | ||
| 020 | 23001119 | MECHANICAL | $109.09 | |||
| 021 | 23002952 | SCREW (M4X4) | $0.00 | |||
| 022 | 23002806 | SCREW | $34.10 | |||
| 023 | 23001515 | NUT (M6) | $0.00 | |||
| 024 | 23001734 | WASHER (M6) | $0.00 | |||
| 025 | NLA | MEMBER, RC | WG03A02017 | $0.00 | ||
| 026 | 23002348 | TRANSFORMER, CONTROL CIRCUIT | $0.00 | |||
| 027 | 23002959 | CONNECTOR | $0.00 | |||
| 028 | 23001465 | STICKER, ELECTRICITY WARNING | $0.00 | |||
| 029 | 23002955 | BUZZER | $0.00 | |||
| 030 | NLA | STICKER | WG03A02017 | $0.00 | ||
| 031 | NLA | LABEL, EARTH | WG03A02017 | $0.00 | ||
| 032 | 23001138 | BUSHING, CABLE PASSAGE | $0.00 | |||
| 033 | 23002956 | SCHRACH, RELAY | $0.00 | |||
| 034 | 23002957 | BASE, RELAY | $0.00 | |||
| 035 | 23002906 | SCREW (M3X25) | $0.00 | |||
| 036 | 23002958 | NUT M3 | $0.00 | |||
| 037 | 23002865 | LOCK WASHER M3 | $0.00 |
*The price can change whitout warning
