Brand: Maytag
Model: MFR50PNAVS - WASHER

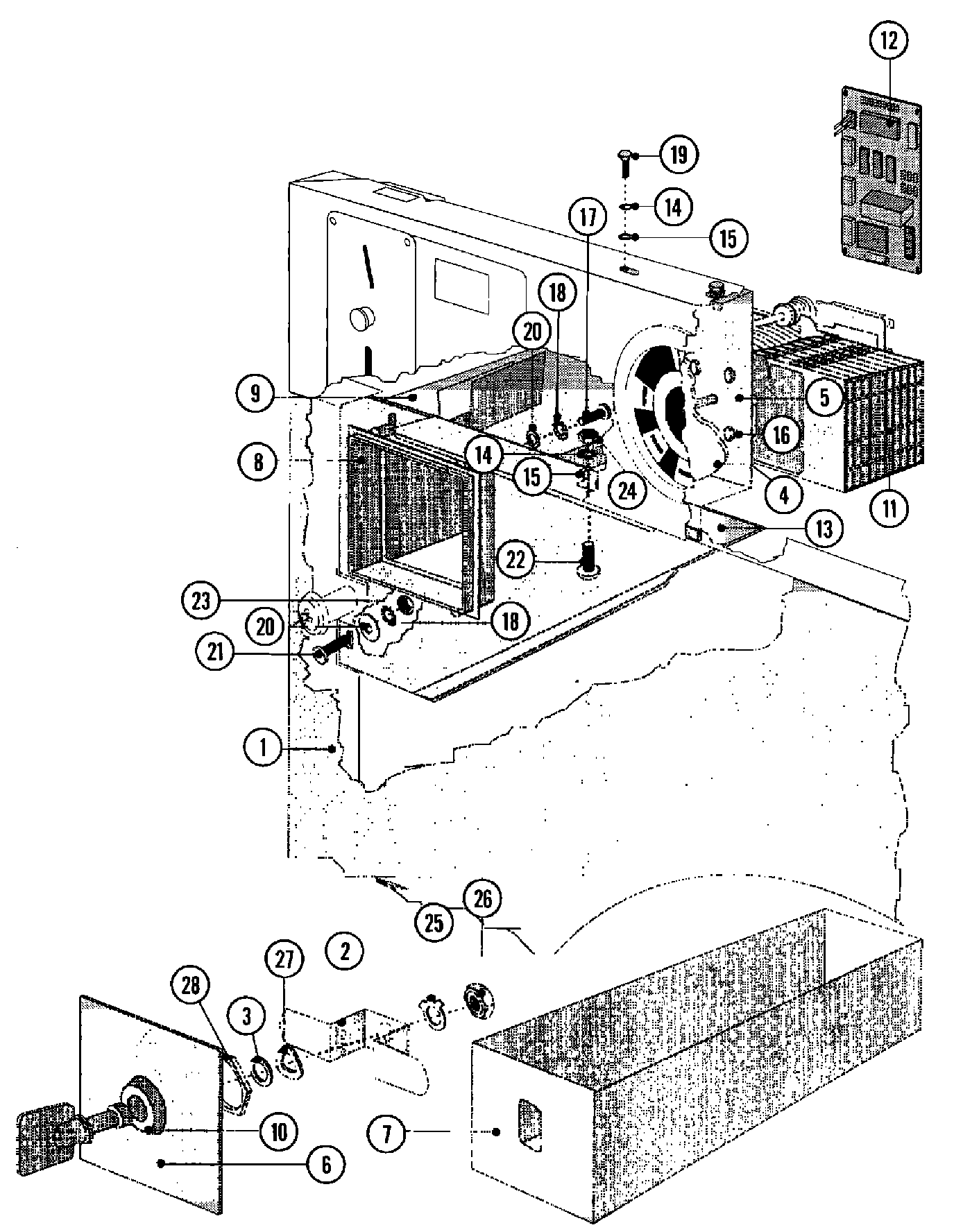

15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 23001320 | PANEL, FRONT (SS)COIN | $0.00 | |||
| 001 | NLA | PANEL, FRONT (SS)OPL | WG03A02017 | $0.00 | ||
| 002 | 23002879 | CAM, COIN LOCK BOX | $0.00 | |||
| 003 | 23001580 | WASHER | 23003788 | $20.38 | ||
| 004 | 23001060 | INDICATOR DISC, TIMER | $0.00 | |||
| 005 | 23002880 | TIMER, SUPPORT | $0.00 | |||
| 006 | 23002881 | PLATE, COIN VAULT ORNAMENTAL | $0.00 | |||
| 007 | 23002882 | BOX, COIN | $0.00 | |||
| 008 | 23002883 | VAULT, ORNAMENTAL | $0.00 | |||
| 009 | 23002884 | VAULT, COIN (SINGLE) LU | $0.00 | |||
| 010 | 23002885 | LOCK, COIN VAULT | $0.00 | |||
| 011 | 23001065 | TIMER (PR 6023 230V) | $0.00 | |||
| 011 | 23002203 | MOTOR, TIMER (230V-SMALL) | $0.00 | |||
| 011 | 23002204 | MOTOR, TIMER (230V-LARGE) | WP23002204 | $0.00 | ||
| 012 | 23001066 | COIN COUNTER (W/LED DISPLAY) | WP23001066 | $0.00 | ||
| 012 | 23001693 | MEMORY | $0.00 | |||
| 013 | 23001502 | SUPPORT, COIN VAULT | $0.00 | |||
| 014 | 23002756 | LOCKWASHER | $7.90 | |||
| 015 | 23001027 | WASHER | WP25100 | $5.09 | ||
| 016 | 23002886 | SCREW (M4X4) | $0.00 | |||
| 017 | 23002423 | SCREW (M4 X 10) | 23001361 | $0.00 | ||
| 018 | 23002111 | WASHER (4) | $0.00 | |||
| 019 | 23002354 | BOLT M6 X | 23004114 | $21.95 | ||
| 020 | 23001610 | WASHER (4.3) | $0.00 | |||
| 021 | 23001012 | SCREW (M4 X 12 STNLS STEEL) | $0.00 | |||
| 022 | NLA | SCREW (M6X12) | WG03A02017 | $0.00 | ||
| 023 | 23002399 | NUT M4 | 23001014 | $9.35 | ||
| 024 | 23002436 | NUT | 23001312 | $15.36 | ||
| 025 | NLA | WASHER, SELF LOCKING | WG03A02017 | $0.00 | ||
| 026 | NLA | NUT, LOCK (SMALL) | WG03A02017 | $0.00 | ||
| 027 | NLA | WASHER, SPRING LOCK | WG03A02017 | $0.00 | ||
| 028 | NLA | NUT, LOCK (BIG) | WG03A02017 | $0.00 | ||
| 029 | 23001038 | CONVERSION KIT (MC TO MN) | $0.00 | |||
| 029 | 23002195 | PC-PN CONVERSION KIT | $0.00 | |||
| 029 | 23002333 | PC TO PN CONVERSION (CSA) | $0.00 | |||
| 029 | 23002334 | MC TO MN CONVERS.(CSA) | $0.00 |
*The price can change whitout warning
