Brand: Maytag
Model: MFR50PNAVS - WASHER

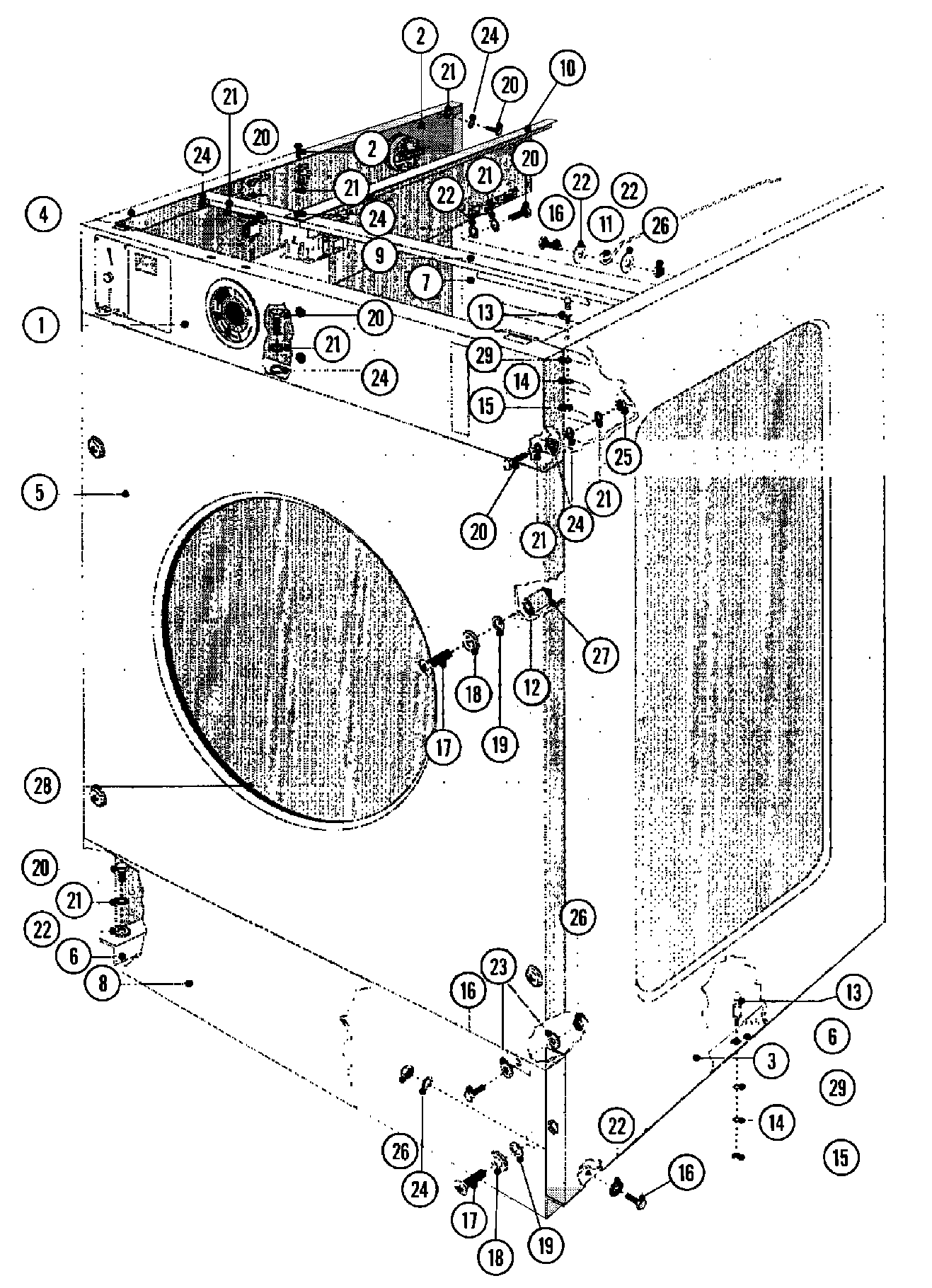

14 - CABINET (SERIES 11)
- 01 - SOAP BOX & TOP COVER ASSEMBLY
- 02 - FRAME PARTS
- 05 - DOOR
- 05 - FRESH FOOD INNER DOOR
- 05 - SECTION
- 06 - BASKET & OUTER SHELL ASSEMBLY
- 07 - REFRIGERATOR DOOR
- 08 - DRAIN & HOSE ASSEMBLY
- 09 - AIR FLOW PARTS
- 09 - ICE MAKER
- 09 - MOTOR & BASKET PULLEY
- 10 - BASE FRAME
- 11 - CABINET
- 13 - BASE FRAME (SERIES 11)
- 14 - CABINET (SERIES 11)
- 15 - TIMER & COIN ASSEMBLY (SERIES 11)
- 16 - SOAP BOX & TOP COVER ASSEMBLY(SERIES 11)
- 17 - DOOR LOCK ASSEMBLY (SERIES 11)
- 18 - DRAIN & HOSE ASSEMBLY (SERIES 11)
- 19 - WATER VALVE & REAR PANEL (SERIES 11)
- 20 - MOTOR & BASKET PULLEY (SERIES 11)
- 21 - BASKET & OUTER SHELL ASSEMBLY(SERIES 11)
- 23 - BEARINGS & TRUNNION ASSEMBLY (SERIES 11)
- 24 - ELECTRICAL COMPONENTS (SERIES 11)
- 25 - CONTROL PANEL (PN MODELS SERIES 11)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 001 | 23002849 | PANEL, CONTROL (COIN METER) | $0.00 | |||
| 002 | 23002850 | COMPONENTS, BOX ELEC. | $0.00 | |||
| 002 | NLA | HOLDER, CONDENSER | WG03A02017 | $0.00 | ||
| 003 | 23002962 | PANEL, SIDE (RT) | $0.00 | |||
| 004 | 23002963 | PANEL, SIDE (LT) | $0.00 | |||
| 005 | 23001320 | PANEL, FRONT (SS)COIN | $0.00 | |||
| 005 | 23002853 | PANEL, FRONT (SS)OPL | $0.00 | |||
| 006 | 23002964 | SUPPORT, PANEL (LT) | $0.00 | |||
| 006 | 23002965 | SUPPORT, PANEL (RT) | $0.00 | |||
| 007 | 23002856 | PLATE, BACK | $0.00 | |||
| 008 | 23002857 | PANEL, SERVICE (STAINLESS) | $0.00 | |||
| 009 | 23002858 | BEAM, CROSS | $0.00 | |||
| 010 | 23001329 | BRACE | $0.00 | |||
| 011 | 23001330 | SUPPORT ROD, TOP PANEL | $0.00 | |||
| 012 | 23002860 | TUBE, DISTANCE | $0.00 | |||
| 013 | 23001332 | PIN, SRV | $0.00 | |||
| 014 | 23002465 | WASHER- TE | 23004485 | $14.46 | ||
| 015 | 23002466 | NUT | W10244602 | $12.22 | ||
| 016 | 23002861 | SCREW (M6X25) LU | $0.00 | |||
| 017 | 23002456 | SCREW (M6X50) | $0.00 | |||
| 018 | 23001337 | WASHER, FINISHING | $0.00 | |||
| 019 | 23001338 | WASHER | W10876532 | $1.71 | ||
| 020 | 23002354 | BOLT M6 X | 23004114 | $21.95 | ||
| 021 | 23002756 | LOCKWASHER | $7.90 | |||
| 022 | 23001309 | WASHER (6.4) LU | $0.00 | |||
| 023 | 23001203 | WASHER (DIA. 16 X 8.4 X 1.6) | $0.00 | |||
| 024 | 23002282 | WASHER (6) | $0.00 | |||
| 025 | 23002436 | NUT | 23001312 | $15.36 | ||
| 026 | 23002471 | NUT | $0.00 | |||
| 027 | 23001339 | NUT, CAGE | $0.00 | |||
| 028 | 23001088 | RUBBER TRIM | $0.00 | |||
| 029 | 23002862 | WASHER (5,3) | $0.00 |
*The price can change whitout warning
