Brand: Maytag
Model: HA2300 - WASHER

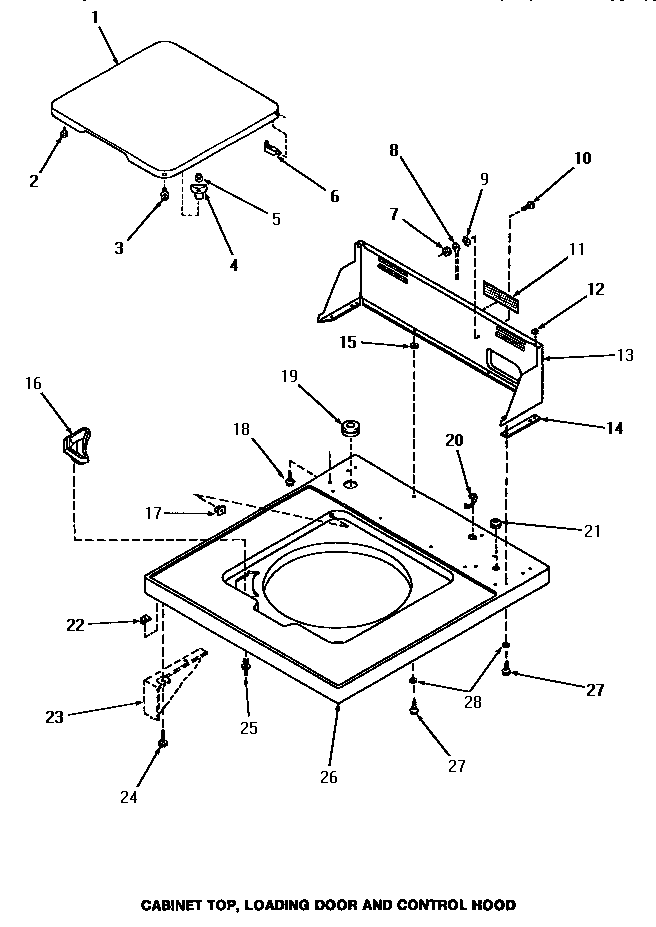

05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| NOTE: | SIPHON BREAK KIT MUST BE INSTALLED IN DRAIN HOSE IF THE DRAIN RECEPTACLE IS LOWER THAN THE CABINET TOP OF THE WASHER. | $0.00 | ||||
| 1 | 27665W | LOADING DOOR, WHITE | $0.00 | |||
| 1 | 27665A | ASSY, LID | $0.00 | |||
| 1 | 27665K | LOADING DOOR, COFFEE | $0.00 | |||
| 1 | 27665H | LOADING DOOR, HARVEST GOLD | $0.00 | |||
| 1 | 27665L | LOADING DOOR, ALMOND | $0.00 | |||
| 2 | 21685 | BUMPER | $0.00 | |||
| 3 | 27203 | ASSY,SCREW & WASHER | $0.00 | |||
| 4 | 27149 | CATCH,LID SWITCH | $0.00 | |||
| 5 | 21752 | NUT,8-32 HEX BRILOCK | $0.00 | |||
| 6 | 27626 | HINGE,HIDDEN | $0.00 | |||
| 7 | 03673 | NUT | $0.00 | |||
| 8 | Y00000000 | SEE NOTE GROUND WIRE | $0.00 | |||
| 9 | 03815 | LOCKWASHER,No.10 EXT SHK | $0.00 | |||
| 10 | 20267 | SCREW,10-24 X 3/8 ROUND | $0.00 | |||
| 11 | 24903 | STICKER,DISCONNECT POW | $0.00 | |||
| 12 | 24522 | NUT,SPEED-8AB-18 C1995 | $0.00 | |||
| 13 | 29551A | CONTROL HOOD, AVOCADO | $0.00 | |||
| 13 | 29551L | CONTROL HOOD, ALMOND | $0.00 | |||
| 13 | 29551K | CONTROL HOOD, COFFEE | $0.00 | |||
| 13 | 29551H | HOOD,CONTROL-DOMESTIC | $0.00 | |||
| 13 | 29551W | CONTROL HOOD, WHITE | $0.00 | |||
| 14 | 23028 | GASKET,CONTROL BOX END | F18T8CWK28 | $0.00 | ||
| 15 | 23425 | WASHER,7/32IDX7/16ODX. | $0.00 | |||
| 17 | 27625 | BUSHING | $0.00 | |||
| 18 | 56392 | SCREW,8-18 X 3/8 TAPPI | $0.00 | |||
| 19 | 20118 | GROMMET,1982 INV | $0.00 | |||
| 20 | 21903 | STRAIN RELIEF | $0.00 | |||
| 21 | 22299 | GROMMET | $0.00 | |||
| 22 | 20249 | NUT,SPEED 10-24 | $0.00 | |||
| 23 | Y00000000 | SEE NOTE CABINET | $0.00 | |||
| 24 | 23008 | SCREW,10-24 X 3/4 SEMS | $0.00 | |||
| 25 | 56534 | BARREL,SUPPORT | $0.00 | |||
| 26 | 27663L | ASSY,TOP-DOMESTIC | $0.00 | |||
| 26 | 27663A | CABINET TOP, AVOCADO | $0.00 | |||
| 26 | 27663H | ASSY,TOP-DOMESTIC xREPLACE | $0.00 | |||
| 26 | 27663W | CABINET TOP, WHITE | $0.00 | |||
| 26 | 27663K | CABINET TOP, COFFEE | $0.00 | |||
| 27 | 23962 | SCREW | WP90767 | $6.30 | ||
| 28 | 20493 | WASHER,11/64IDX3/8ODX3 | $0.00 |
*The price can change whitout warning
