Brand: Maytag
Model: HA2300 - WASHER

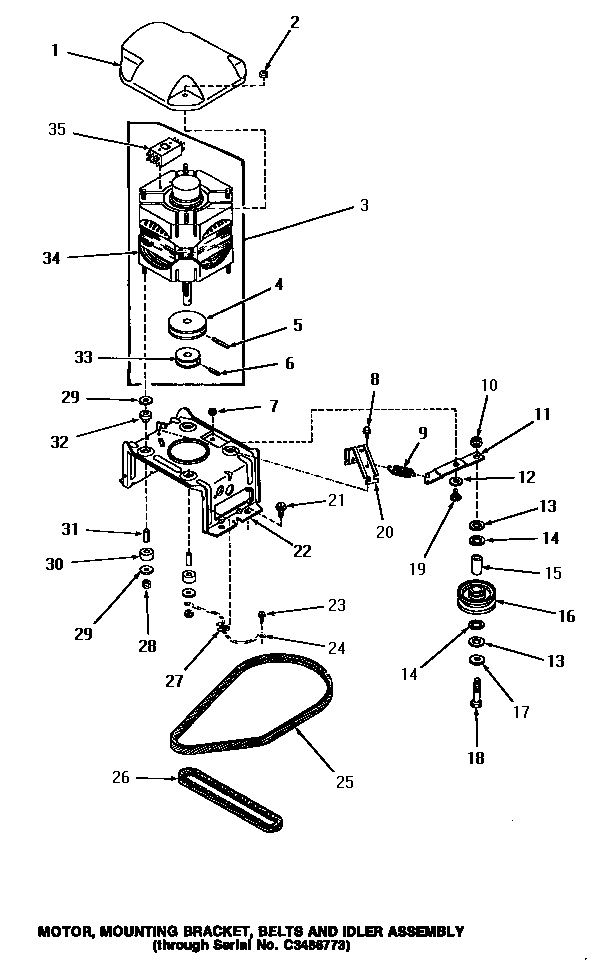

13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 27136 | SHIELD,MOTOR | $0.00 | |||
| 2 | 27201 | LOCKNUT | $0.00 | |||
| 3 | 27658 | MOTOR ASSEMBLY, ONE SPEED | 27658P | $0.00 | ||
| 4 | 27171 | PULLEY,MOTOR | $0.00 | |||
| 5 | 23750 | PIN,ROLL | $0.00 | |||
| 6 | 10416 | PLEATED FILTER 20" X 24" X 1" | PFMF20X24X1 | $14.60 | ||
| 7 | 52566 | NUT, HEX JAM 1/4-20L | WPW10139757 | $0.00 | ||
| 8 | 56264 | SCREW | WP27001200 | $5.34 | ||
| 9 | 27928 | SPRING | $0.00 | |||
| 10 | 56156 | NUT, 3/8-16 SERRATED | $0.00 | |||
| 11 | 27135 | LEVER,IDLER | $0.00 | |||
| 12 | 81392 | WASHER | $0.00 | |||
| 13 | 28018 | WASHER | $0.00 | |||
| 14 | 27210 | WASHER | $0.00 | |||
| 15 | 27601 | BEARING | $0.00 | |||
| 16 | 27212 | KIT, IDLER PULLEY | $0.00 | |||
| 17 | 27211 | WASHER | $0.00 | |||
| 18 | 27209 | BOLT | $0.00 | |||
| 19 | 27229 | SHOULDER BOLT | $0.00 | |||
| 20 | 27929 | xARM SPRING | $0.00 | |||
| 21 | 27157 | SCREW,10-24 X 5/8 SPEC | $0.00 | |||
| 22 | 27112 | MOTOR MOUNTING BRACKET | $0.00 | |||
| 23 | 26592 | HEX HEAD SCREW | $0.00 | |||
| 24 | Y00000000 | SEE NOTE GROUND WIRE, GREEN | $0.00 | |||
| 25 | 27246 | KIT, IDLER PULLEY | R9900487 | $0.00 | ||
| 26 | 27155 | BELT,PUMP | WP27155 | $49.42 | ||
| 27 | Y00161 | GROUND CLIP | $0.00 | |||
| 28 | 23604 | NUT,HEX 10-32 LOCK | $0.00 | |||
| 29 | 03888 | WASHER | $0.00 | |||
| 30 | 01953 | WASHER,LOWER MOTOR MOU | $0.00 | |||
| 31 | 27181 | SPACER,MOTOR | $0.00 | |||
| 32 | 01952A | MOUNTING,RUBBER | $0.00 | |||
| 33 | Y27104 | PULLEY,MOTOR | $0.00 | |||
| 34 | 27659 | MOTOR | $0.00 | |||
| 35 | 24139 | SWITCH,MOTOR | $0.00 | |||
| 35 | 24140 | SWITCH,MOTOR | $0.00 | |||
| 35 | 24142 | SWITCH,MOTOR | $0.00 | |||
| 35 | Y24149 | SWITCH,MOTOR | $0.00 | |||
| NI | 258P3 | KIT,CAPACITOR | $0.00 |
*The price can change whitout warning
