Brand: Maytag
Model: HA2300 - WASHER

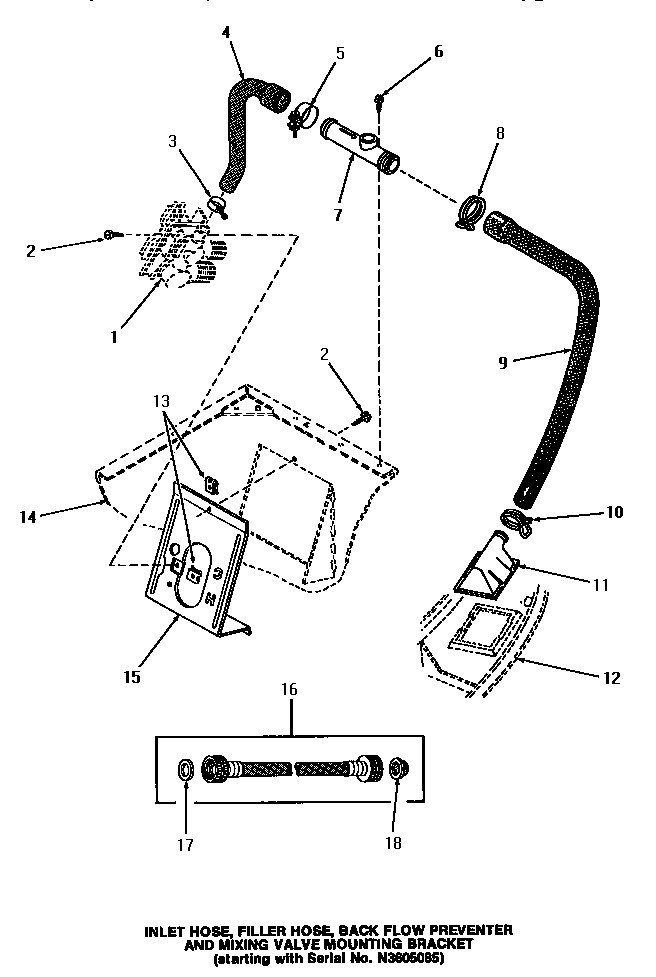

09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y00000000 | SEE NOTE MIXING VALVE | $0.00 | |||
| 2 | 56392 | SCREW,8-18 X 3/8 TAPPI | $0.00 | |||
| 3 | 27643 | CLAMP | WP596669 | $6.27 | ||
| 4 | 27183 | HOSE,MIXING VALVE | $0.00 | |||
| 5 | 27152 | CLAMP HOSE | $0.00 | |||
| 6 | 23962 | SCREW | WP90767 | $6.30 | ||
| 7 | 27118 | BACK FLOW PREVENTER | $0.00 | |||
| 8 | 29176 | CLAMP | WP285655 | $5.88 | ||
| 9 | 29182 | HOSE,WATER INLET | $0.00 | |||
| 10 | 29210 | HOSE CLAMP | $0.00 | |||
| 11 | 29154 | HEAD,WATER INLET | $0.00 | |||
| 12 | Y00000000 | SEE NOTE OUTER TUB COVER | $0.00 | |||
| 13 | 54038 | NUT,SPEED U-TYPE | $0.00 | |||
| 14 | Y00000000 | SEE NOTE CABINET | $0.00 | |||
| 15 | 27126 | BRACKET, VALVE | $0.00 | |||
| 16 | 28330 | REPL BY 28330P | 202860, WP89503 | Call to order | ||
| 17 | 20290 | WASHER, 19/32 IDX1.031 | $0.00 | |||
| 18 | 28605 | STRAINER- | WP22002960 | $5.83 |
*The price can change whitout warning
