Brand: Maytag
Model: HA2300 - WASHER

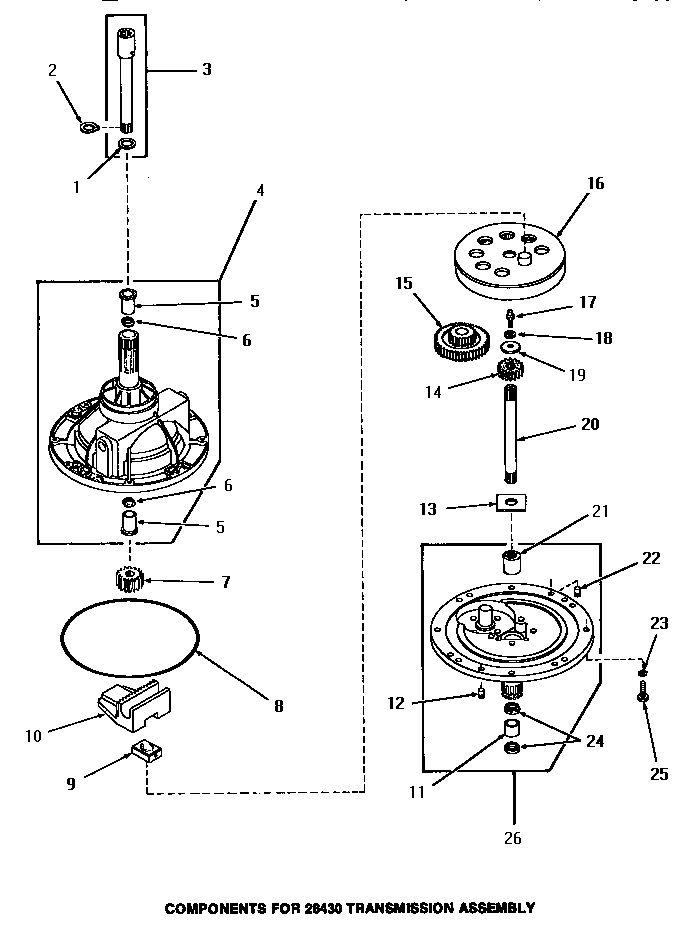

01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y00000000 | SEE NOTE SHIM WASHER -- (SEE NOTE) | $0.00 | |||
| 2 | 27197 | RING,RETAINING | $0.00 | |||
| 3 | 368P3 | KIT,COUPLING & SHAFT | $0.00 | |||
| 4 | 27191 | TRANSMISSION CASE ASSEMBLY | $0.00 | |||
| 4 | 28435 | TRANSMISSION CASE ASSEMBLY | $0.00 | |||
| 5 | 27021 | BEARING | $0.00 | |||
| 6 | Y28114 | SEAL- OIL | WP40042701 | $6.63 | ||
| 7 | 27003 | CURRENT RELAY 1/8, 1/6, 1/5HP | CR313 | $30.00 | ||
| 8 | 27028 | GASKET,TRANSMISSION RE | $0.00 | |||
| 8 | 28434P | LOCTITE | $0.00 | |||
| 9 | 26493 | SLIDE | $0.00 | |||
| 10 | Y27001 | RACK | $0.00 | |||
| 11 | 27022 | BEARING | $0.00 | |||
| 12 | 27172 | PIN,DOWEL | $0.00 | |||
| 13 | 27016 | WASHER | $0.00 | |||
| 14 | 29156 | PINION,INPUT | $0.00 | |||
| 15 | 27002 | CURRENT RELAY 1/8HP | CR312 | $30.00 | ||
| 16 | 26577 | ASSY,GEAR & STUD | $0.00 | |||
| 17 | 27030 | SCREW,1/4-20 SPECIAL | $0.00 | |||
| 18 | 21456 | LOCKWASHER,1/4 INTSHKP | $0.00 | |||
| 19 | 26509 | WASHER | $0.00 | |||
| 20 | 27081 | SHAFT,INPUT | $0.00 | |||
| 21 | 27026 | COVER TRANSMISSION | $0.00 | |||
| 22 | 27172 | PIN,DOWEL | $0.00 | |||
| 23 | 02431 | LOCKWASHER,1/4 EXT SHK | $0.00 | |||
| 24 | Y28114 | SEAL- OIL | WP40042701 | $6.63 | ||
| 25 | 20253 | SCREW,CAP-1/4-20 X 1`` | $0.00 | |||
| 26 | 27192 | TRANSMISSION COVER ASSEMBLY | $0.00 | |||
| NI | 27243 | OIL,CW TRANSMISSION F- | $0.00 |
*The price can change whitout warning
