Brand: Maytag
Model: HA2300 - WASHER

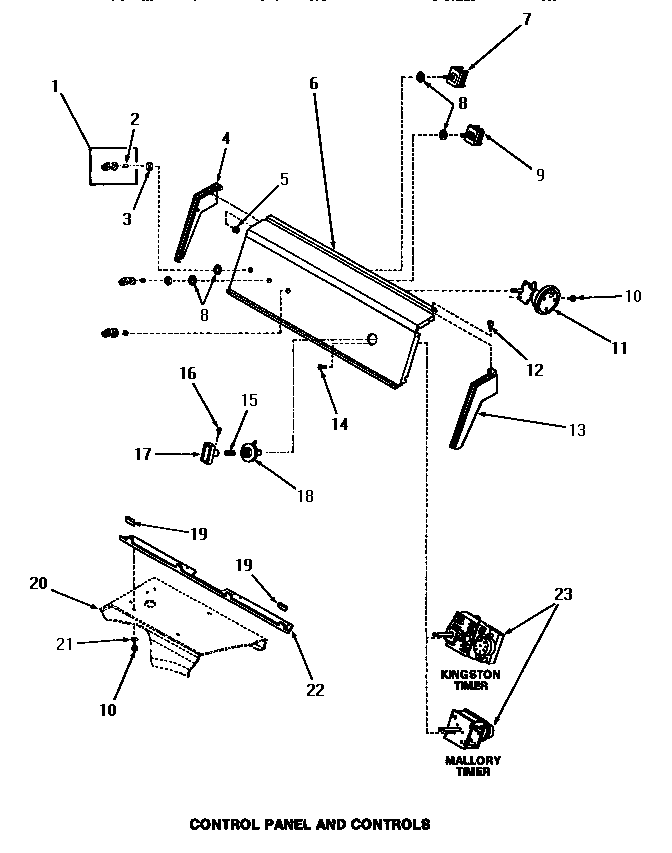

06 - CONTROL PANEL & CONTROLS
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| NOTE: | 1. IF DRAIN HOSE MUST BE SHORTENED, CUT HOSE BETWEEN MOLDED END AND MOLDED ELBOW. USE ONE NO. 25863 HOSE COUPLING TO SPLICE HOSE. | $0.00 | ||||
| 1 | 27376 | NO LONGER AVAILABLE | $0.00 | |||
| 2 | 10519 | RETAINER | $0.00 | |||
| 3 | 57584 | NUT | $0.00 | |||
| 4 | 25124 | CONTROL HOOD END, LEFT | $0.00 | |||
| 5 | 25126 | PALNUT,3/16 SF188 | $0.00 | |||
| 6 | 27681 | PANEL,CONTROL | $0.00 | |||
| 7 | 21300 | SWITCH,TEMPERATURE | $0.00 | |||
| 8 | 91176 | LOCKWASHER,3/8 INTSHKP | $0.00 | |||
| 10 | 23962 | SCREW | WP90767 | $6.30 | ||
| 11 | 27778 | SWITCH,PRESSURE | $0.00 | |||
| 12 | 25232 | SCREW,8AB-18X7/8 OVAL | $0.00 | |||
| 13 | 25123 | CONTROL HOOD END, RIGHT | $0.00 | |||
| 14 | 70212 | SCREW,8-32 X 5/32 RD H | $0.00 | |||
| 15 | 26319 | SPRING | $0.00 | |||
| 16 | 26318 | SCREW,8-32 X 1/4 SET S | $0.00 | |||
| 17 | 27382 | TIMER KNOB | $0.00 | |||
| 18 | 28287 | TIMER KNOB INDICATOR | $0.00 | |||
| 19 | 24859 | SLEEVE,SUPPORT ANGLE | $0.00 | |||
| 20 | Y00000000 | SEE NOTE CABINET TOP | $0.00 | |||
| 21 | 20493 | WASHER,11/64IDX3/8ODX3 | $0.00 | |||
| 22 | 23360 | ANGLE | $0.00 | |||
| 23 | 27694 | xTIMER (REMFG) | $0.00 |
*The price can change whitout warning
