Brand: Maytag
Model: HA2300 - WASHER

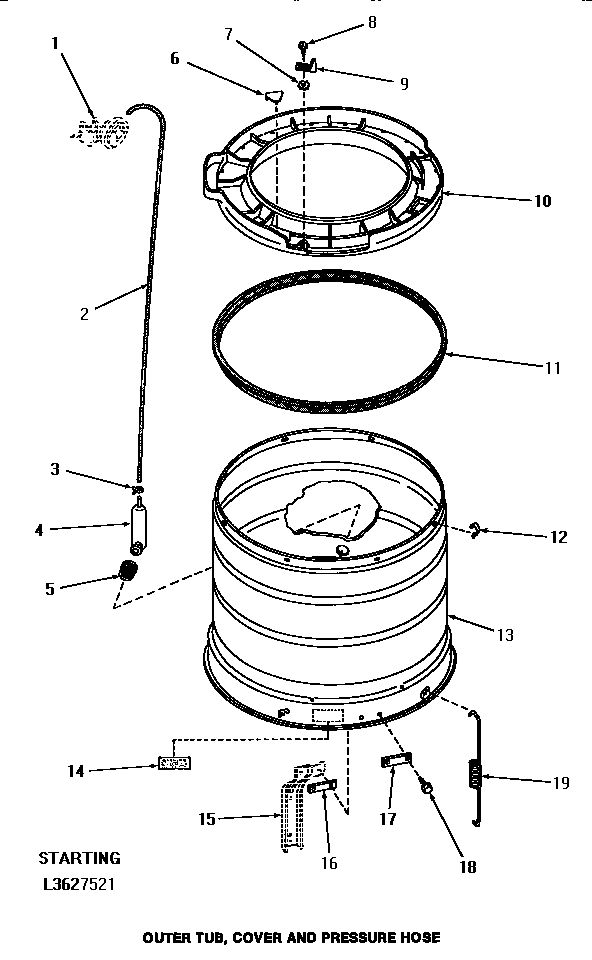

16 - OUTER TUB, COVER & PRESSURE HOSE
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y00000000 | SEE NOTE PRESSURE SWITCH | $0.00 | |||
| 2 | 29213 | PRESSURE HOSE | $0.00 | |||
| 3 | Y22294 | CLAMP | WP596669 | $6.27 | ||
| 4 | 29116 | PRESSURE ACCUMULATOR | $0.00 | |||
| 5 | 29175 | GROMMET | $0.00 | |||
| 6 | 29901 | PLUG,SNAP-IN-OUTER TUB | $0.00 | |||
| 7 | 03815 | LOCKWASHER,No.10 EXT SHK | $0.00 | |||
| 8 | 25723 | SCREW | WP27001200 | $5.34 | ||
| 9 | 27247 | TRIGGER,OUT-OF-BAL SWI | $0.00 | |||
| 10 | 29555 | COVER OUTER TUB | $0.00 | |||
| 11 | 27184 | GASKET,TUB COVER | $0.00 | |||
| 12 | Y27017 | CLIP,SPRING | $0.00 | |||
| 13 | 29232 | OUTER TUB | $0.00 | |||
| 14 | Y27195 | STICKER | $0.00 | |||
| 15 | Y00000000 | SEE NOTE SUPPORT LEG | $0.00 | |||
| 16 | 27927 | PLATE,LEG .032 | $0.00 | |||
| 17 | 27926 | PLATE,LEG .063 | $0.00 | |||
| 18 | 27205 | SCREW AND LOCKWASHER | $0.00 | |||
| 19 | 27239 | SPRING,LEG | $0.00 |
*The price can change whitout warning
