Brand: Maytag
Model: HA2300 - WASHER

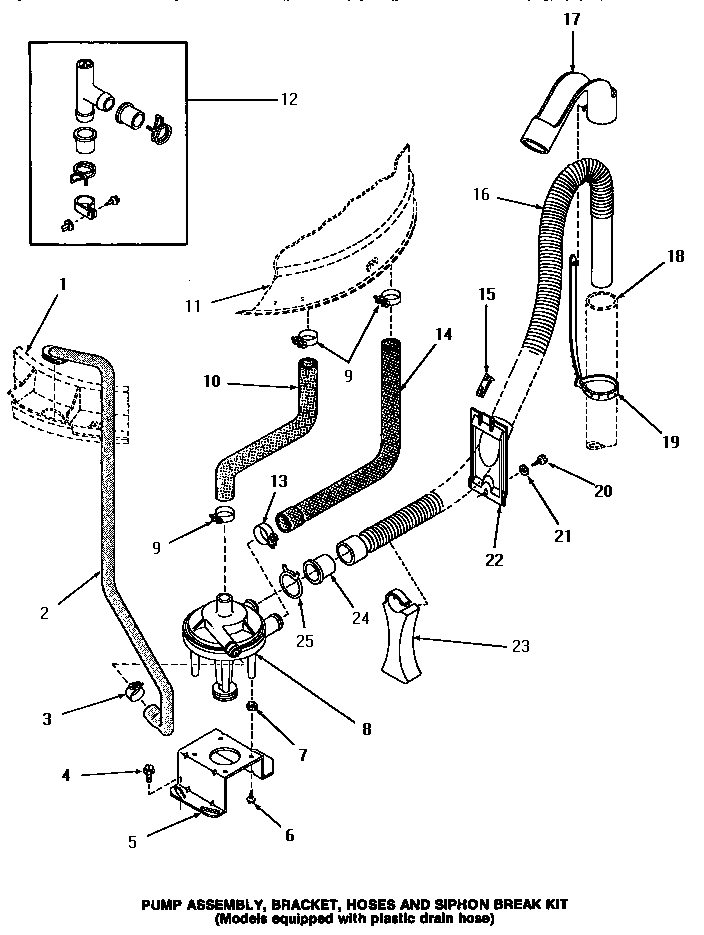

19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y00000000 | SEE NOTE OUTER TUB COVER | $0.00 | |||
| 2 | 27232 | HOSE | $0.00 | |||
| 3 | 27644 | CLAMP | WP285655 | $5.88 | ||
| 4 | 27157 | SCREW,10-24 X 5/8 SPEC | $0.00 | |||
| 5 | 27105 | BRACKET,PUMP MOUNTING | $0.00 | |||
| 6 | 51784 | SCREW,10B-16 X 1/2 HEX | $0.00 | |||
| 7 | 27063 | ON-SERT | $0.00 | |||
| 8 | 27065 | PUMP ASSEMBLY (2 STAGES) | 31968 | $131.70 | ||
| 9 | 27151 | CLAMP | WP285655 | $5.88 | ||
| 10 | 27159 | HOSE,TUB TO PUMP | $0.00 | |||
| 11 | Y00000000 | SEE NOTE OUTER TUB | $0.00 | |||
| 12 | 386P3 | SIPHON BREAK KIT | 76660 | $84.67 | ||
| 13 | 27153 | CLAMP | WP285655 | $5.88 | ||
| 14 | 27160 | HOSE,TUB TO PUMP-DRAIN | $0.00 | |||
| 15 | 29936 | HOSE RETAINER CLIP | $0.00 | |||
| 16 | 29142 | HOSE DRAIN | $0.00 | |||
| 17 | 29144 | DRAIN HOSE SLEEVE | $0.00 | |||
| 18 | Y00000000 | SEE NOTE STANDPIPE | $0.00 | |||
| 19 | 29999 | STRAP, STANDPIPE-BEADED | 8539404 | $0.00 | ||
| 20 | 27196 | SCREW | WP27001200 | $5.34 | ||
| 21 | 20492 | WASHER | $0.00 | |||
| 22 | 29131 | RETAINER,DIRECTIONAL | $0.00 | |||
| 23 | 29284 | STAND,HOSE | $0.00 | |||
| 24 | 29143 | HOSE,ADAPTER | $0.00 | |||
| 25 | 29172 | CLAMP,HOSE | $0.00 | |||
| NI | 406P3 | DRAIN HOSE EXTENSION KIT | $0.00 |
*The price can change whitout warning
