Brand: Maytag
Model: HA2300 - WASHER

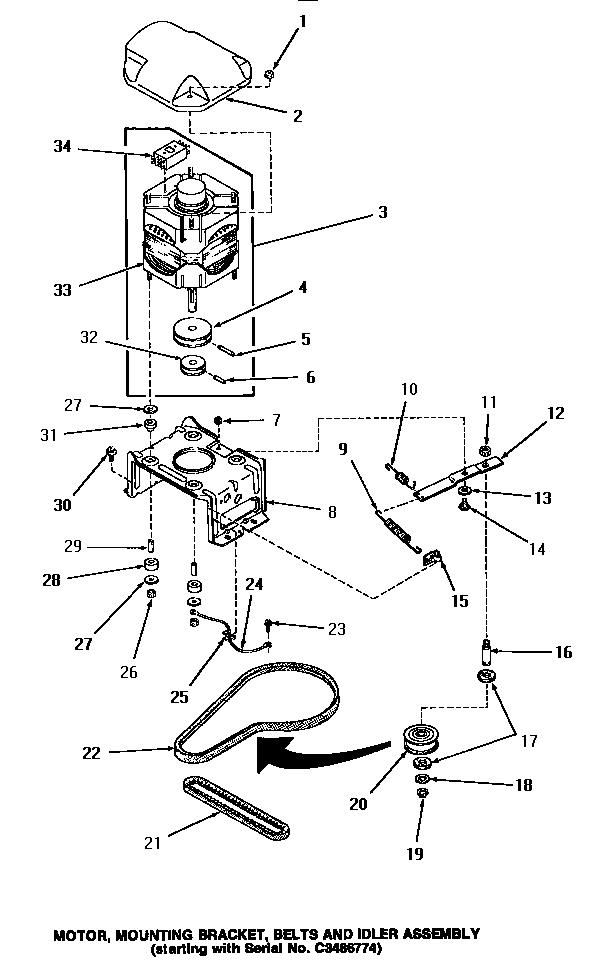

14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 27201 | LOCKNUT | $0.00 | |||
| 2 | 27136 | SHIELD,MOTOR | $0.00 | |||
| 3 | 27658 | MOTOR ASSEMBLY, ONE SPEED | 27658P | $0.00 | ||
| 4 | 27171 | PULLEY,MOTOR | $0.00 | |||
| 5 | 23750 | PIN,ROLL | $0.00 | |||
| 6 | 10416 | PLEATED FILTER 20" X 24" X 1" | PFMF20X24X1 | $14.60 | ||
| 7 | 52566 | NUT, HEX JAM 1/4-20L | WPW10139757 | $0.00 | ||
| 8 | 28791 | BRACKET,MOTOR MOUNT | $0.00 | |||
| 9 | 28807 | SPRING- ID | WP37366 | $2.81 | ||
| 10 | 30620 | SPRING,IDLER LEVER HEL | $0.00 | |||
| 11 | 28803 | CLAMP | W10833902 | $8.29 | ||
| 12 | 31054 | IDLER LEVER | $0.00 | |||
| 13 | 81392 | WASHER | $0.00 | |||
| 14 | 27229 | SHOULDER BOLT | $0.00 | |||
| 15 | 28849 | CLIP,SPRING | $0.00 | |||
| 16 | 28802 | SHAFT,IDLER | $0.00 | |||
| 17 | Y29443 | WASHER,FELT | $0.00 | |||
| 18 | 52549 | WASHER | WP233520 | $6.32 | ||
| 19 | 23748 | RING, RETAINNING | WP23748, WG02F09146 | $10.56 | ||
| 20 | 28800 | WHEEL,IDLER | WP40045001 | $55.43 | ||
| 21 | 27155 | BELT,PUMP | WP27155 | $49.42 | ||
| 22 | 28808 | BELT (AGITATE & SPIN) | WP28808, WG02L06800 | $48.97 | ||
| 23 | 26592 | HEX HEAD SCREW | $0.00 | |||
| 24 | Y00000000 | SEE NOTE GROUND WIRE, GREEN | $0.00 | |||
| 25 | Y00161 | GROUND CLIP | $0.00 | |||
| 26 | 23604 | NUT,HEX 10-32 LOCK | $0.00 | |||
| 27 | 03888 | WASHER | $0.00 | |||
| 28 | 01953 | WASHER,LOWER MOTOR MOU | $0.00 | |||
| 29 | 27181 | SPACER,MOTOR | $0.00 | |||
| 30 | 27157 | SCREW,10-24 X 5/8 SPEC | $0.00 | |||
| 31 | 01952A | MOUNTING,RUBBER | $0.00 | |||
| 32 | Y27104 | PULLEY,MOTOR | $0.00 | |||
| 33 | 27659 | MOTOR | $0.00 | |||
| 33 | 30897 | INSTRUCTIONS | $0.00 | |||
| 34 | 24139 | SWITCH,MOTOR | $0.00 | |||
| 34 | 24140 | SWITCH,MOTOR | $0.00 | |||
| 34 | 30895A | MOTOR SWITCH, GENERAL ELECTRIC | $0.00 | |||
| 34 | 30897A | SWITCH | 30897AP | $54.71 | ||
| 34 | 24142 | SWITCH,MOTOR | $0.00 | |||
| 34 | Y24149 | SWITCH,MOTOR | $0.00 | |||
| NI | 20605 | LUBE,HI TEMPERATURE-56 | 20299 | $0.00 | ||
| NI | 258P3 | KIT,CAPACITOR | $0.00 |
*The price can change whitout warning
