Brand: Maytag
Model: HA2300 - WASHER

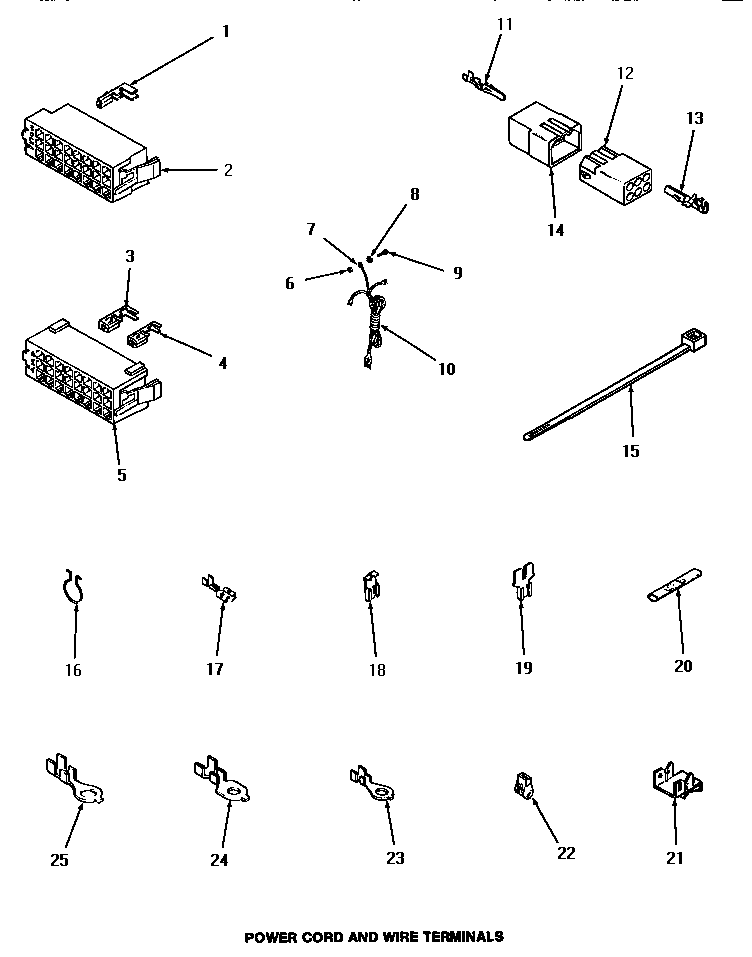

17 - POWER CORD & WIRE TERMINALS
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 24176 | MOLEX TERMINAL | $0.00 | |||
| 2 | 24175 | HOUSING,R.H. | $0.00 | |||
| 3 | 00183 | TERMINAL,FEMALE 2-WIRE | $0.00 | |||
| 4 | 00180 | TERMINAL,FEMALE | $0.00 | |||
| 5 | 28856 | HOUSING,24 POSITION | $0.00 | |||
| 6 | 03673 | NUT | $0.00 | |||
| 7 | Y00000000 | SEE NOTE GROUND WIRE, GREEN | $0.00 | |||
| 8 | 03815 | LOCKWASHER,No.10 EXT SHK | $0.00 | |||
| 9 | 20267 | SCREW,10-24 X 3/8 ROUND | $0.00 | |||
| 10 | 22660 | POWER CORD AND PLUG | $0.00 | |||
| 11 | Y00116 | TERMINAL,PIN-MALE | $0.00 | |||
| 12 | 26708 | RECEPTACLE,6 CIRCUIT | $0.00 | |||
| 13 | Y00117 | FEMALE SOCKET TERMINAL | $0.00 | |||
| 14 | 23041 | PLUG,6 CIRCUIT | $0.00 | |||
| 15 | 55881 | WIRE TIE | $0.00 | |||
| 16 | 51291 | CLIP,WIRE | $0.00 | |||
| 17 | Y00119 | SPADE TERMINAL(18 GAUGE) | $0.00 | |||
| 18 | Y00120 | TERMINAL,FLAG-1/4 FEMA | $0.00 | |||
| 19 | 29673 | DOUBLE CONNECTOR | $0.00 | |||
| 20 | 21091 | CONNECTOR TWO 1/4 INCH MALE | $0.00 | |||
| 21 | Y00161 | GROUND CLIP | $0.00 | |||
| 22 | 70210 | INSULATOR,BLUE | $0.00 | |||
| 23 | 00110 | TERMINAL,RING-10 STUD | $0.00 | |||
| 24 | Y00111 | TERMINAL,RING-10 STUD | $0.00 | |||
| 25 | Y00113 | TERMINAL,RING-1/4 STUD | $0.00 |
*The price can change whitout warning
