Brand: Maytag
Model: HA2300 - WASHER

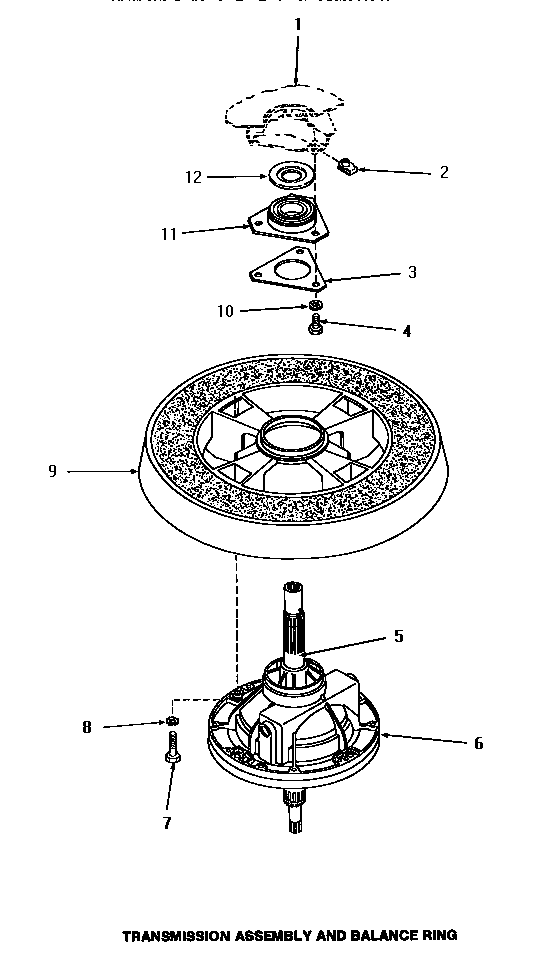

22 - TRANSMISSION ASSY & BALANCE RING
- 01 - 28430 TRANSMISSION ASSY COMPONENTS
- 01 - CABINET PARTS
- 02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
- 02 - TOP AND CONSOLE PARTS
- 03 - AGITATOR & POST
- 03 - ATTACHMENT PARTS
- 04 - SHELVES
- 05 - CABINET TOP, LOADING DOOR & CONTROL HOOD
- 06 - CONTROL PANEL & CONTROLS
- 06 - UNIT COMPARTMENT & SYSTEM
- 08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT
- 11 - LINT FILTER, WASHTUB & HUB
- 12 - MIXING VALVE ASSY
- 13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
- 15 - OUTER TUB, COVER & PRESSURE HOSE
- 16 - OUTER TUB, COVER & PRESSURE HOSE
- 17 - POWER CORD & WIRE TERMINALS
- 18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT
- 22 - TRANSMISSION ASSY & BALANCE RING
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y00000000 | SEE NOTE OUTER TUB | $0.00 | |||
| 2 | 27222 | NUT,RETAINER 5/16-18 | $0.00 | |||
| 3 | 27166 | WASHER,BEARING HOUSING | $0.00 | |||
| 4 | 01355 | SCREW | $0.00 | |||
| 5 | 27604P | NEVER-SEEZE 1 OZ TUBE | $0.00 | |||
| 6 | 30946 | TRANSMISSION ASSEMBLY | $0.00 | |||
| 7 | 27200 | CAP SCREW | $0.00 | |||
| 8 | 02431 | LOCKWASHER,1/4 EXT SHK | $0.00 | |||
| 9 | Y29117 | ASSY,BALANCE RING-COMPL | $0.00 | |||
| 10 | 04366 | LOCKWASHER,5/16INTSHKP | $0.00 | |||
| 11 | 27182 | MAIN BEARING ASSY | WP40004201P | $89.89 | ||
| 12 | 27187 | FLINGER | $0.00 |
*The price can change whitout warning
